1/2″ DJ66605 Non-metallic Pump
PP Diaphragm Pump, PDVF Diaphragm Pump
1/2″ DJ66605X Non-metallic Pump performance
| Max Flow (lpm/gpm) | Porting | Max Pressure (psi/bar) |
| 50/13 | NPT | 102/ 7 |
| Max Solids (mm) | Wetted End | |
| 2.4 | PP | |

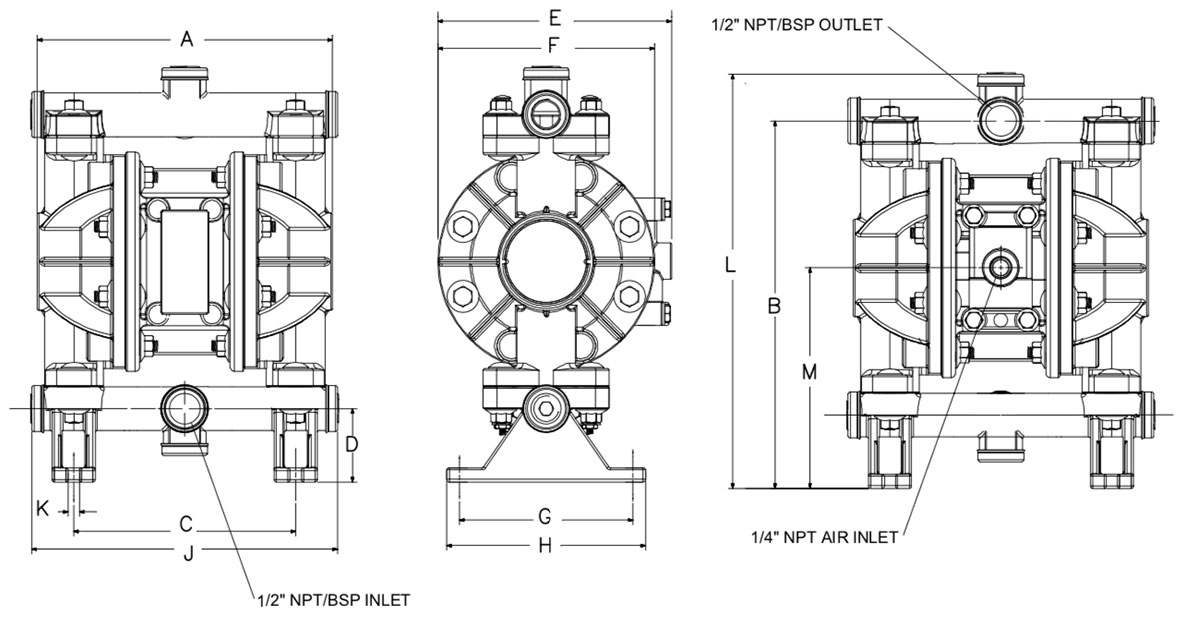

Pump Dimension Drawing
| A – 8.16” (207.1 mm) | E – 6.47” (164 mm) | J – 8.45” (215 mm) |
| B – 10.05”(255 mm) | F – 6.00”(152 mm) | K – 8.45” (215 mm) |
| C – 6.14” (155.8 mm) | G – 4.81″ (122.2 mm) | L – 8.45” (215 mm) |
| D – 2.01”(51 mm) | H – 5.50”(140 mm) | M – 8.45” (215 mm) |
| | |
| SHIPPING WEIGHT: | Polypropylene 7.2 lbs (3.3 kg) | PVDF 9.5lbs (4.3 kg) |
Chemical Chart of Materials |
| Material Name | Working Temperature Limited F(℃) | Level 1 ~ 5 (Level 5 is the best) |
| Chemical Resistance | Wear Resistance | Flexibility |
| Buna-N | -10(-23) ~ 190(88) | 1 | 2 | 3 |
| PTFE-Diaphragm | -35(-37) ~ 220(104) | 5 | 2 | – |
| EPDM | -40(-40) ~ 280(138) | 4 | 4 | 4 |
| Viton | -40(-40) ~ 350(177) | 4 | 2 | 1 |
| Neoprene | -10(-23) ~ 200(93) | 1 | 3 | 3 |
| PP | +35(2) ~ 175(79) | 4 | 2 | – |
| Santoprene | -40(-40) ~ 275(135) | 4 | 5 | 5 |
| PVDF | +10(-12) ~ 200(93) | 5 | 2 | – |
| TPO | -40(-40) ~ 239(115) | 4 | 5 | 3 |
