1/2″ DJE5 Non-metallic Pump performance
| Max Flow (lpm/gpm) | Porting | Max Pressure (psi/bar) |
| 43/11 | NPT | 102/ 7 |
| Max Solids (mm) | Wetted End | |
| 1.6 | PP |

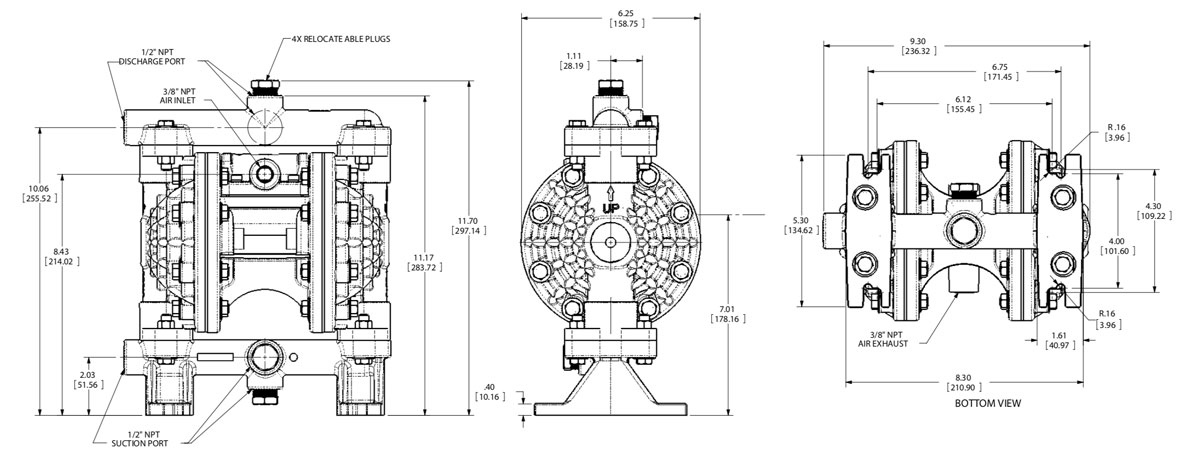

Pump Dimension Drawing
SHIPPING WEIGHT: •Polypropylene 8.5 lbs (3.9 kg) •PVDF 12 lbs (5.4 kg)
Chemical Chart of Materials | ||||
| Material Name | Working Temperature Limited F(℃) | Level 1 ~ 5 (Level 5 is the best) | ||
| Chemical Resistance | Wear Resistance | Flexibility | ||
| Buna-N | -10(-23) ~ 190(88) | 1 | 2 | 3 |
| PTFE-Diaphragm | -35(-37) ~ 220(104) | 5 | 2 | – |
| EPDM | -40(-40) ~ 280(138) | 4 | 4 | 4 |
| Viton | -40(-40) ~ 350(177) | 4 | 2 | 1 |
| Neoprene | -10(-23) ~ 200(93) | 1 | 3 | 3 |
| PP | +35(2) ~ 175(79) | 4 | 2 | – |
| Santoprene | -40(-40) ~ 275(135) | 4 | 5 | 5 |
| PVDF | +10(-12) ~ 200(93) | 5 | 2 | – |
| TPO | -40(-40) ~ 239(115) | 4 | 5 | 3 |
