1/2″(12mm) DJ05 Non-metallic Pump performance
Max Flow (lpm/gpm) | Porting | Max Pressure (psi/bar) |
56/15 | NPT/BSP | 102/ 7 |
Max Solids (mm) | Wetted End | Suction Lift (m) |
3 | PP/ PVDF | 4.12(Dry)/ 7.62(Wet) |
![DJ05NM-performance-curve](https://i0.wp.com/www.pumpfromchina.com/wp-content/uploads/2017/11/DJ05NM-performance-curve.jpg?fit=800%2C457&ssl=1)

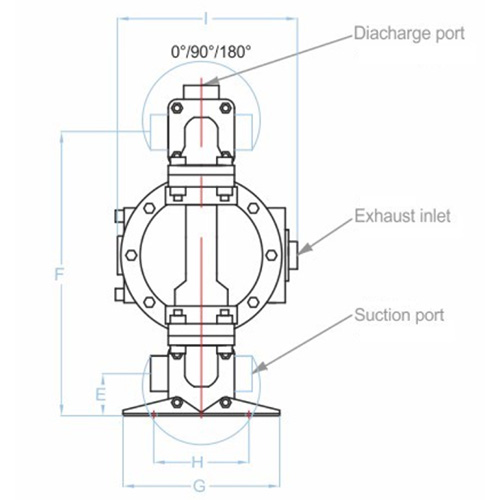

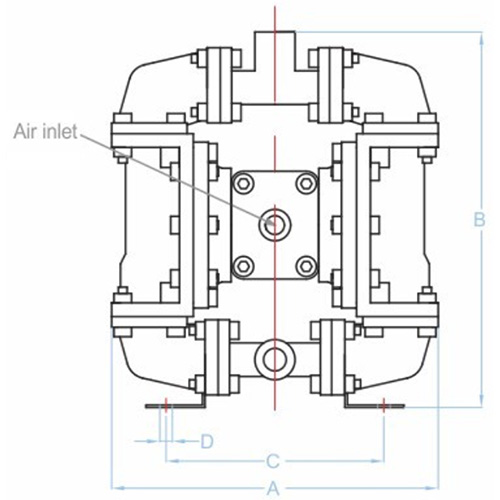

Pump Dimension Drawing
Pump Model | Port Size | Air Inlet Size | Exhaust Port Size | A | B | C | D | E | F | G | H | I (Stand Muffler) | I (Metal Muffler) | Weight (lb) |
DJ05NM | inches | mm inches | ||||||||||||
1/2″NPT/BSP(internal) 1″ NPT/BSP(external) | 1/4″ NPT | 3/8″ NPT | 257 10.1″ | 293 11.5″ | 166 6.6″ | 9 0.36″ | 36 1.4″ | 250 9.8″ | 142 5.6″ | 92 5.6″ | 181 7.1″ | 224 8.8″ | PP:11.2 PVDF:13 |
![B05 Non-metallic Pump Profile-1](https://www.pumpfromchina.com/wp-content/uploads/2017/10/B05_1.jpg)
![B05 Non-metallic Pump Profile-2](https://www.pumpfromchina.com/wp-content/uploads/2017/10/B05_2.jpg)
Chemical Chart of Materials | ||||
Material Name | Working Temperature Limited F(℃) | Level 1 ~ 5 (Level 5 is the best) | ||
Chemical Resistance | Wear Resistance | Flexibility | ||
Buna-N | -10(-23) ~ 190(88) | 1 | 2 | 3 |
PTFE-Diaphragm | -35(-37) ~ 220(104) | 5 | 2 | – |
EPDM | -40(-40) ~ 280(138) | 4 | 4 | 4 |
Viton | -40(-40) ~ 350(177) | 4 | 2 | 1 |
Neoprene | -10(-23) ~ 200(93) | 1 | 3 | 3 |
PP | +35(2) ~ 175(79) | 4 | 2 | – |
Santoprene | -40(-40) ~ 275(135) | 4 | 5 | 5 |
PVDF | +10(-12) ~ 200(93) | 5 | 2 | – |
TPO | -40(-40) ~ 239(115) | 4 | 5 | 3 |
