1/4″ (6mm) DJ02 Non-metallic Pump

Air Operated PP Diaphragm Pump, Pneumatic PVDF Diaphragm Pump

DJ02 Non-Metallic pump profile

1/4″DJ02 Non-metallic Pump performance

Max Flow (lpm/gpm)PortingMax Pressure (psi/bar)
18.1/4.8NPT/BSP102/ 7
Max Solids (mm)Wetted EndSuction Lift (m)
0.4PP/ PVDF2.74(Dry)/ 9.45(Wet)
DJ02NM-performance-curve

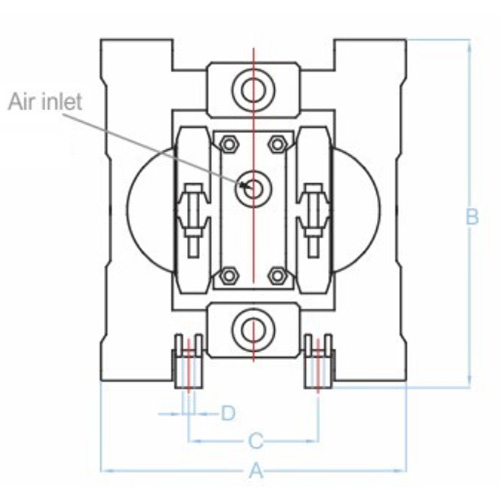

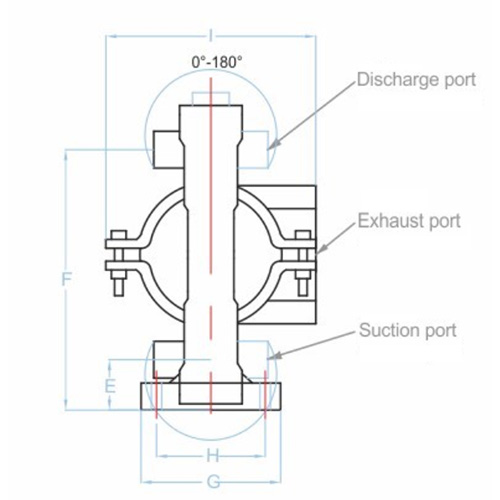

Pump Dimension Drawing

Pump ModelPort SizeAir Inlet SizeExhaust Port SizeABCDEFGHIWeight (lb)
DJ02NMinchesmm
inches
1/4″ NPT1/8″ NPTN/A145
5.7″
162
6.4″
61
2.4″
5
0.2″
25
1″
140
5.5″
64
2.5″
54
2.1″
114
4.5″
3.3
B02 Non-metallic Pump Profile-1
B02 Non-metallic Pump Profile-2

Chemical Chart of Materials

Material NameWorking Temperature Limited F(℃)Level 1 ~ 5 (Level 5 is the best)
Chemical ResistanceWear ResistanceFlexibility
Buna-N-10(-23) ~ 190(88)123
PTFE-Diaphragm-35(-37) ~ 220(104)52
EPDM-40(-40) ~ 280(138)444
Viton-40(-40) ~ 350(177)421
Neoprene-10(-23) ~ 200(93)133
PP+35(2) ~ 175(79)42
Santoprene-40(-40) ~ 275(135)455
PVDF+10(-12) ~ 200(93)52
TPO-40(-40) ~ 239(115)453
